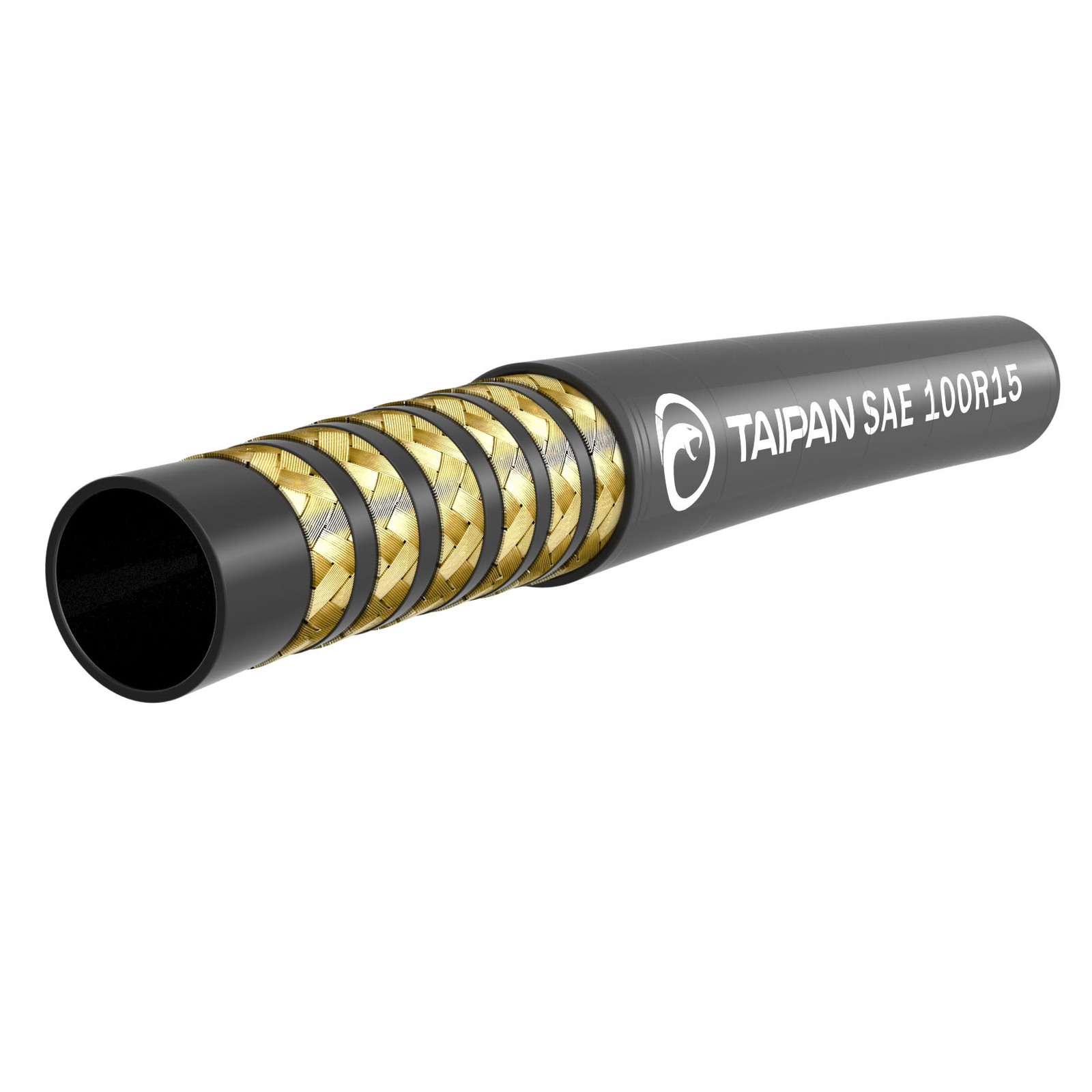

The above image is a representation of the product only.
Some variations of items may appear different.
TAIPAN R15 6000PSI MULTISPIRAL HOSE
THW-100R15
TAIPAN R15 6000PSI MULTISPIRAL HOSE
Application: Heavy duty impulsive high pressure applications like excavators, dozers, dumpers, cranes, compactors, rock breakers and hydraulic drill rigs and other construction equipment. Suitable for petroleum based hydraulic fluids, synthetic esters, biodegradable hydraulic fluids, water-glycol based fluids and air.
Special Features: Qualified to 1 million impulse cycles, more than twice that required by EN 856 R15/ISO 3862-1. Good flexibility for compact hydraulic circuits. Good weather and ozone resistance.
Reinforcement: 4 - 6 Very high tensile steel spirals * Cover: Hydraulic oil, abrasion and weather resistant wrapped synthetic rubber
Temperature Range: Suitable for use in the range -40˚C to + 121˚C (intermittent to 125˚C)
Specification: SAE 100 R 15 (* = 3/8" - 1" made by 4 wire spirals, remainder are 6 wire spiral)
Couplings: N series non skiv, L series 3/8" - 5/8"
|
TAIPAN R15 6000PSI MULTISPIRAL HOSE |
||||||||
|
Part Number |
Size (In) |
ID (mm) |
OD (mm) |
Working PSI |
Min Burst Pressure (PSI) |
Min Bend Radius (mm) |
Reel Length (M) |
Weight KG/M |
|
100R15-06AHF |
3/8 |
9.5 |
20.0 |
6,100 |
24,400 |
150 |
60 |
0.65 |
|
100R15-08AHF |
1/2 |
12.7 |
23.0 |
6,100 |
24,400 |
200 |
60 |
0.85 |
|
100R15-10AHF |
5/8 |
16.0 |
26.6 |
6,100 |
24,400 |
100 |
60 |
1.00 |
|
100R15-12AHF |
3/4 |
19.0 |
30.6 |
6,100 |
24,400 |
265 |
60 |
1.50 |
|
100R15-16AHF |
1 |
25.4 |
37.8 |
6,100 |
24,400 |
330 |
60 |
2.00 |
|
100R15-20AHF |
1 1/4 |
31.8 |
49.3 |
6,100 |
24,400 |
445 |
60 |
3.55 |
|
100R15-24AHF |
1 1/2 |
38.1 |
57.0 |
6,100 |
24,400 |
530 |
60 |
4.65 |
| SKU | THW-100R15 |
| Brand | TAIPAN |
